Latest Single Punch Tablet Press in Stock -

Description

What is A Single Station Tablet Press and How Does it Work?

The Tablet Press machine is used to press granular raw materials into tablets, it is widely applied for trial production and small batch production in pharmaceutical plants, chemical plants, food plants, hospitals, scientific research institutes and laboratories.

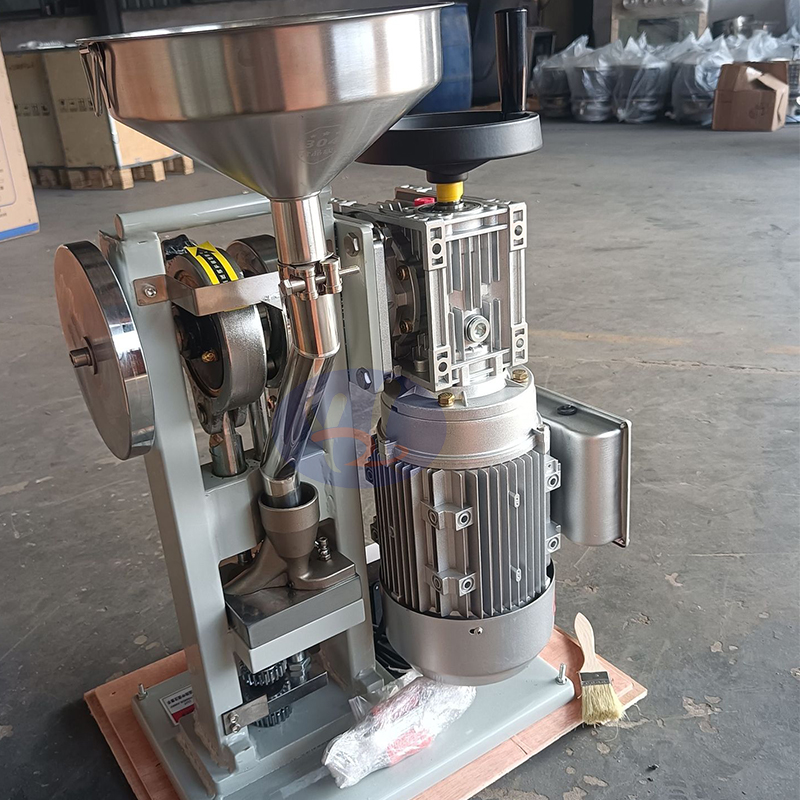

4 Single Station Tablet Press

Single Station Tablet Press Structure

The pill press machine includes a hopper, a handwheel, a press adjusting part, a motor, a mould, an outlet, a thick adjusting part, a base, a switch button, a click button.

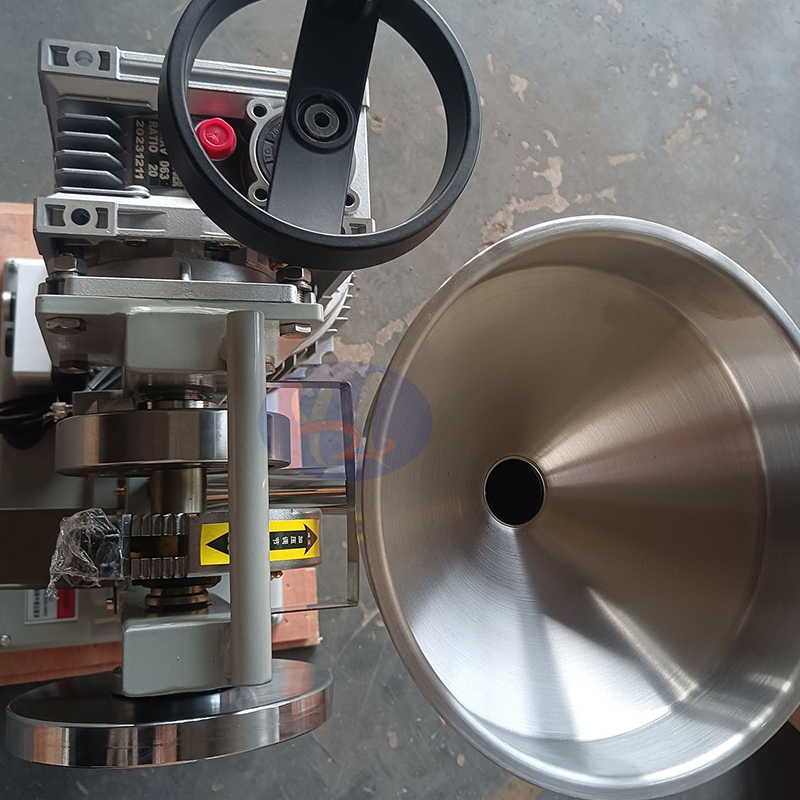

5 Single Punch Tablet Press structure

Features of Pill Press Machine

Adjust pressure freely
Large power motor
Mechanical control panel
With excellent performance, good adaptability, convenient use, easy maintenance, small volume and light weight, the machine can also realize.

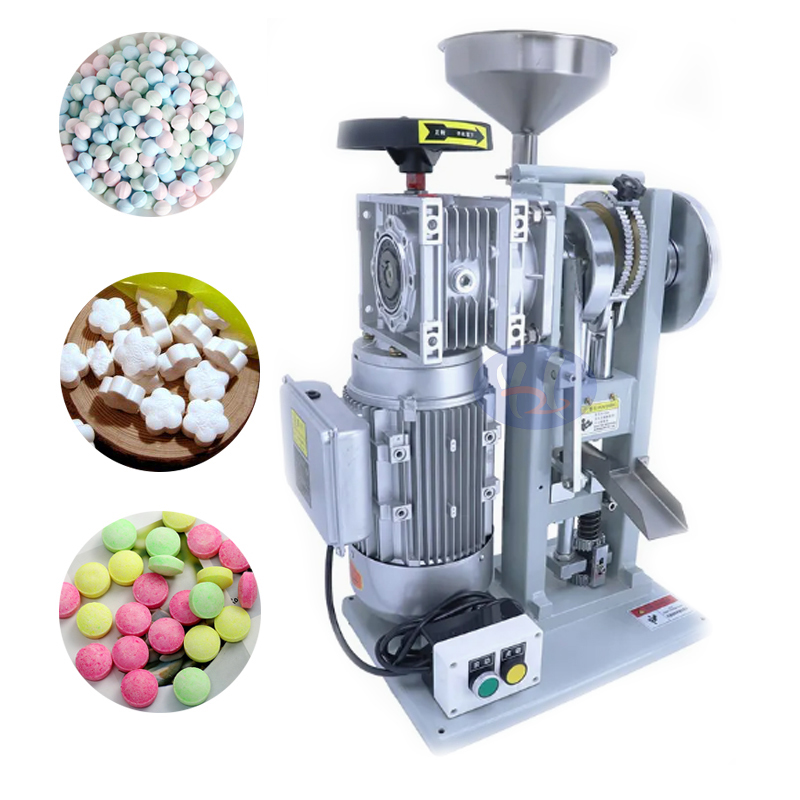

6 Single Station Tablet Press feature a

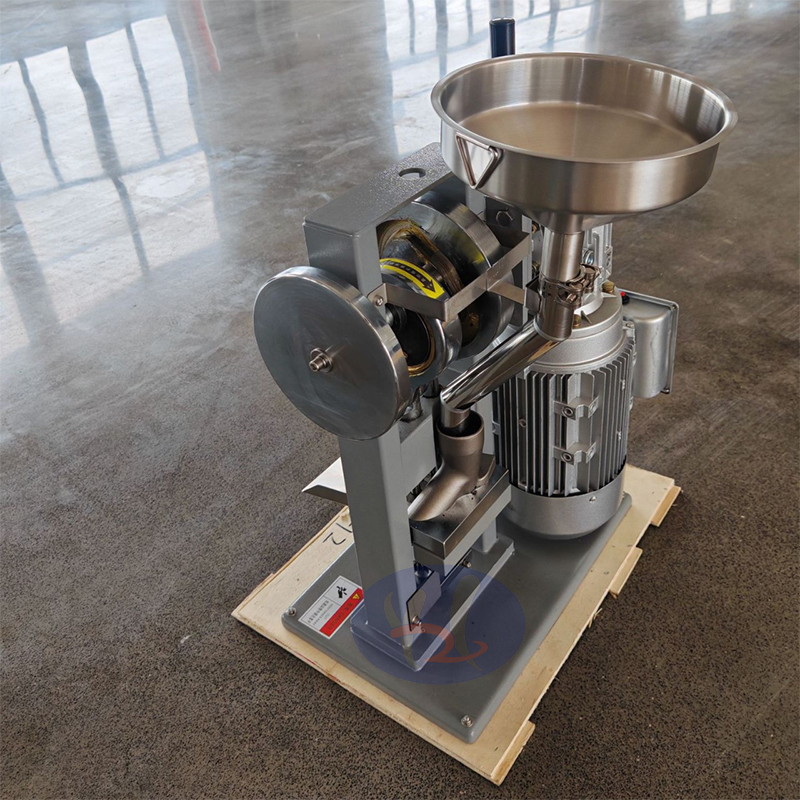

7 Single Station Tablet Press feature b

Single Station Tablet Press Diagram

Model NO.	TNP5	Certification	CE Certified, GMP Compliant, ISO Certified
Tablet Shape	Oval, Rectangular, Round, Square	Warranty	1 Year
Finished Dosage Form	Granules	Condition	New
Type	Medical Tablet Press Machine	After-Sales Service	24 Hours on Line Support
Max.Tablet Pressure (kN)	50	Max.Tablet Diameter (mm)	4-18
Max.Filling Depth (mm)	16	Max.Tablet Thickness (mm)	6
Production Capacity (PC/H)	4320	Motor Power (Kw)	1.1
Voltage	220V	Transport Package	Plywood Case
Origin	China	Production Capacity	4320 PCS/H

Application Range

The tablet press machine is installed with only one set of punches, and the material filling depth and the tablet thickness can be adjusted. Through the replacement of punches, tablets of different and sizes can be made, so to meet the needs for making various kinds of TCM and western medicine tablets in the pharmaceutical industry and making various kinds of similar products in other industries. The machine has been deeply favored by users in various industries.
